Why the Smart 1.1 Controller?

New Image

The Smart 1.1 Controller is a Windows-based Programmable Logic Controller (PLC) that provides the best of both worlds -- the cost effectivenes of a PLC and the flexibility of Windows. It's scalable, extensible, customizable, and affordable and makes upgrading from an F4 controller cost-effective and easy!

Smart 1.1 Windows-based Programmable Logic Controller for use with industrial ovens and environmental test chambers. Scalable, extensible, customizable. Accommodates 100 profiles with 100 steps each. Communicates in real time. Provides remote access via smartphone and tablet using Internet connection and VNC application. Makes upgrading from an F4 controller easy and cost-effective. Smart data logging and trending. Touch screen. Smart-screen navigation, 4-PID loops (2 on C-EVO) with ramp/soak programming for each loop. Two-plus channels (1-2 on C-EVO, depending on the model), two process inputs, six-event (2 on C-EVO) outputs, alarms, and other features. Free software license.

Download Product Info

TPS Smart 1.1 Windows-based Programmable Logic Controller for Industrial Ovens and Environmental Test Chambers

Smart 1.0 Controller

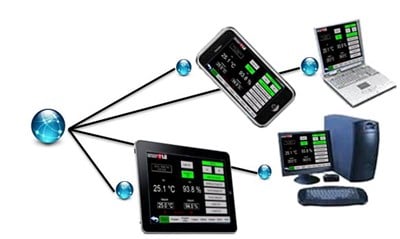

The Smart 1.1 Controller is a Windows-based, programmable logic controller (PLC) that provides the best of both worlds – the cost effectiveness of a PLC and the flexibility of Windows. Smart 1.1 is a scalable, extensible, customizable, and affordable controller platform for use in environmental-testing chambers and industrial ovens. It has a real-time function screen and communicates in real time, providing remote access via smartphone, tablet, etc. using an Internet connection and VNC application.

Smart 1.1 offers a WSVGA 1024 x 600 high-resolution, graphical touch screen; Smart 1.1 graphical user interface; 800 MHz Cortex A9 CPU with graphics processor; and 4GB flash storage, capable of storing up to 100 profiles, with 100 steps each. Test-data retrieval and profile-data transfer/sharing is accomplished through a local, USB flash drive. Individual PID control loops allow for precise process control, with ramp/soak programming for each loop. Smart 1.1 uses a 100-ohm platinum RTD for temperature measurement and a dry-capacitance-type sensor for humidity measurement.

The Smart 1.1 Controller offers smart, touch-screen navigation; smart data logging and trending; smart and intuitive alarms; and smart and easy programming. Upgrading from an F4 controller to the Smart 1.1 controller is cost-effective and easy.

Smart 1.0 Controller

The controller’s Smartwire architecture involves less wiring than other controllers, reducing the opportunity for errors and making troubleshooting and replacement easier. Smart 1.0 has two process inputs and six event outputs (two on the C-EVO) for special applications. Additional features and events can be purchased as options. Ethernet is standard on all models. Serial Modbus RTU (RS232 or RS485) and IEEE 488 also are available.

Available now on the Tenney C-EVO Temperature Humidity Test Chamber and scheduled for release on all TPS testing chambers. Contact your TPS sales representative for details.

Benefits

  • Provides the cost-effectiveness of a PLC and the flexibility of Windows
  • Comprehensive. Scalable. Extensible. Affordable.
  • Smart, touch-screen navigation
  • Smart data logic and trending
  • Smart and intuitive alarms
  • Smart and easy programming
  • Smartwire architecture reduces wiring and errors
  • Makes troubleshooting and replacement easier
  • Allows custom modules to be added easily (current monitor, etc.)
  • System can run in single set point mode or programmed mode
  • Communicates in real time using free viewers (VNC, etc.)
  • Makes upgrading from an F4 to Smart 1.0 easy and cost effective

Features

  • 7”- 12” WVGA 800 x 480 high-resolution, graphical touch screen (7” on C-EVO)
  • Smart 1.1 Projective Capacitive Graphical User Interface
  • 800 MHz Cortex A9 Central Processing Unit with Graphics Processor
  • 4GB (SD card) flash storage
  • 2 channel (plus) (1-2 channels on C-EVO, depending on model)
  • Capable of storing up to 100 separate profiles, with up to 100 steps each
  • Test-data retrieval and profile-data transfer/sharing is accomplished through a local, USB flash drive
  • Alarm, program, and datalog files easily can be transferred to and from the controller via the USB port
  • 4 (or more) individual PID control loops (2 on C-EVO) allow for precise process control
  • Ramp/Soak programming for each loop
  • 100-ohm, platinum RTD is used for temperature measurement, and a dry-capacitance-type sensor is used for humidity measurement
  • 6 customer-event outputs (2-event output on C-EVO) are provided for special applications (optional features and additional event outputs may be purchased)
  • Real-time and historical color graph displays for temperature and humidity as well as set-point values
  • Single, set-point control included
  • Real-time function screen shows what components are energized for ease of troubleshooting
  • Communicates in real time utilizing free viewers, VNC, etc.)
  • 2 process inputs:  Ch1 RTD, Ch2 RH (analog)
  • Alarm output for each channel process or deviation
  • 2 – 4-20mA, analog-signal retransmit output to peripheral devices such as optional chart recorders
  • Built in TCP/IP networking via Ethernet 10/100 communication is standard
  • Serial Modbus RTU (RS232 or RS485) and IEEE GPIB are available as options
  • Built-in, peripheral-support expansion using the USB port, providing an effective and flexible interface for use with USB keyboards, mice, and barcode scanners
  • Remote access via smartphone, tablet, etc., with Internet connection and VNC application
  • Free software user license
  • Dynamic Expandable Zoom
  • 850:1 Contrast Zoom
  • Windows CE 7.0 Operating System
  • 16 million display colors
  • TFT LCD Anti-Glare Display
