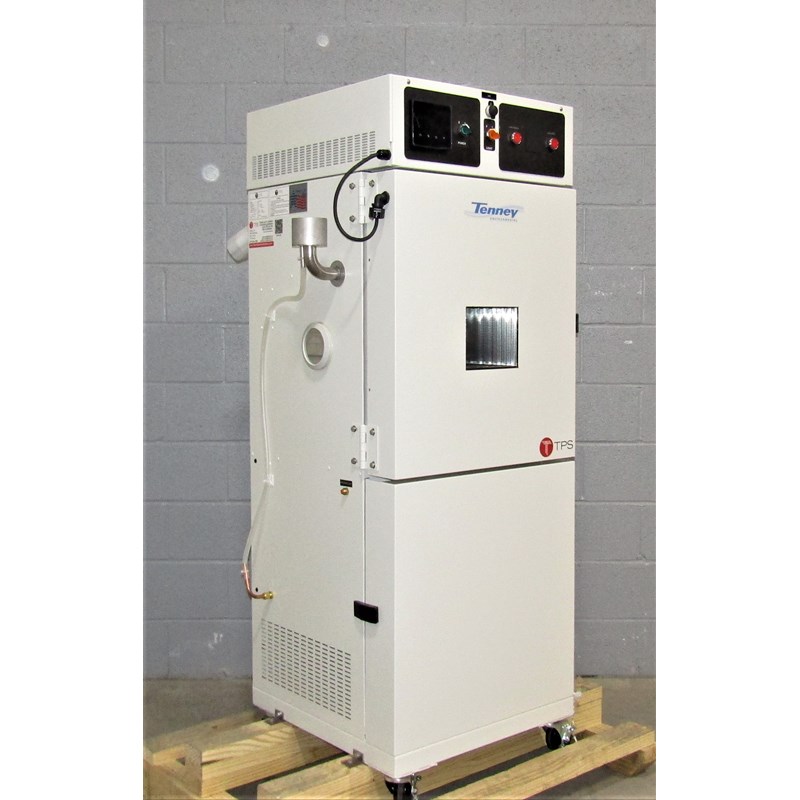

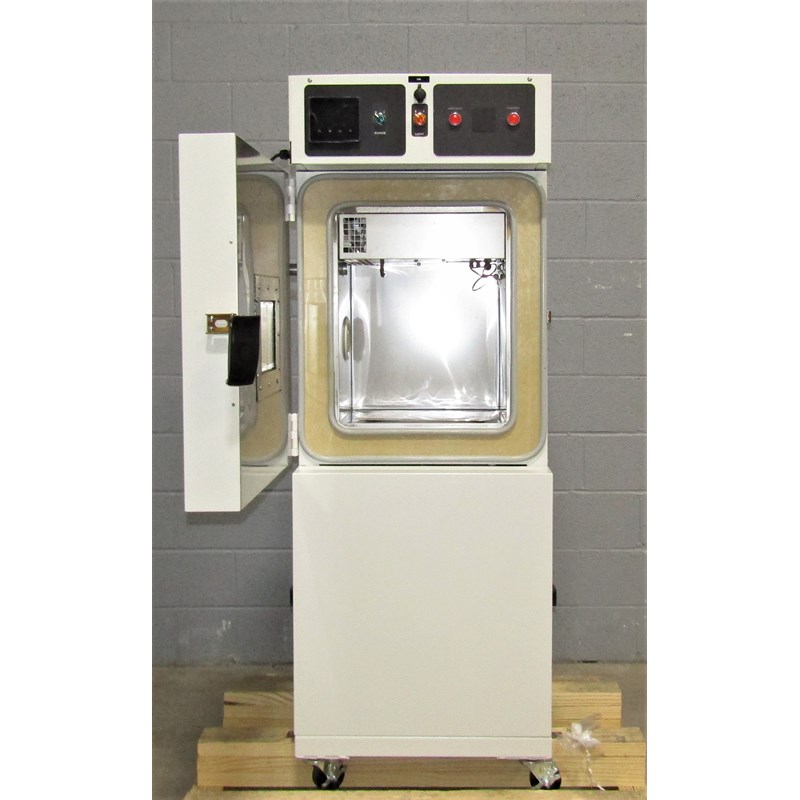

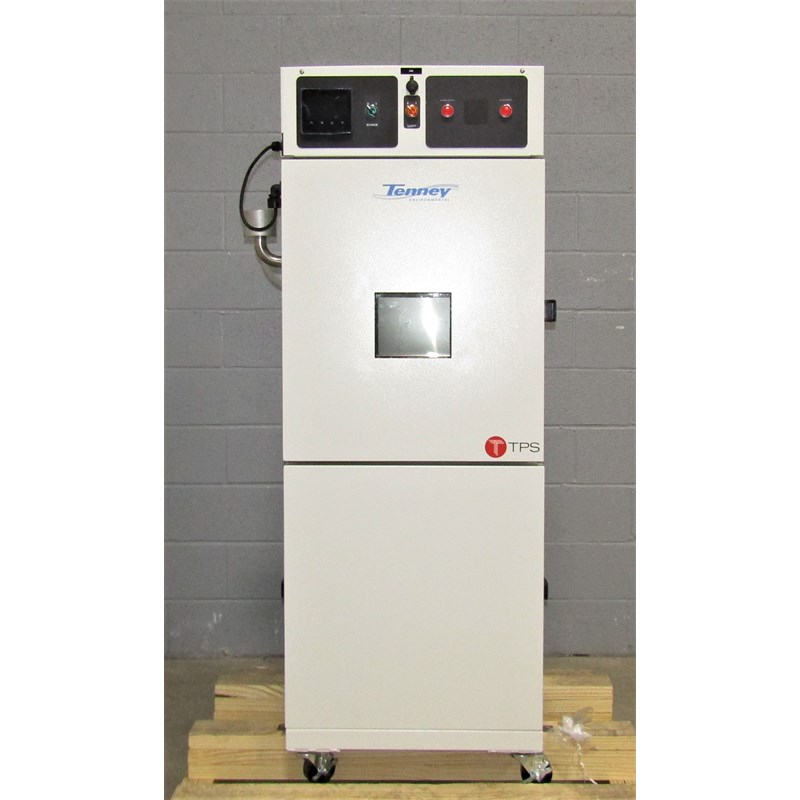

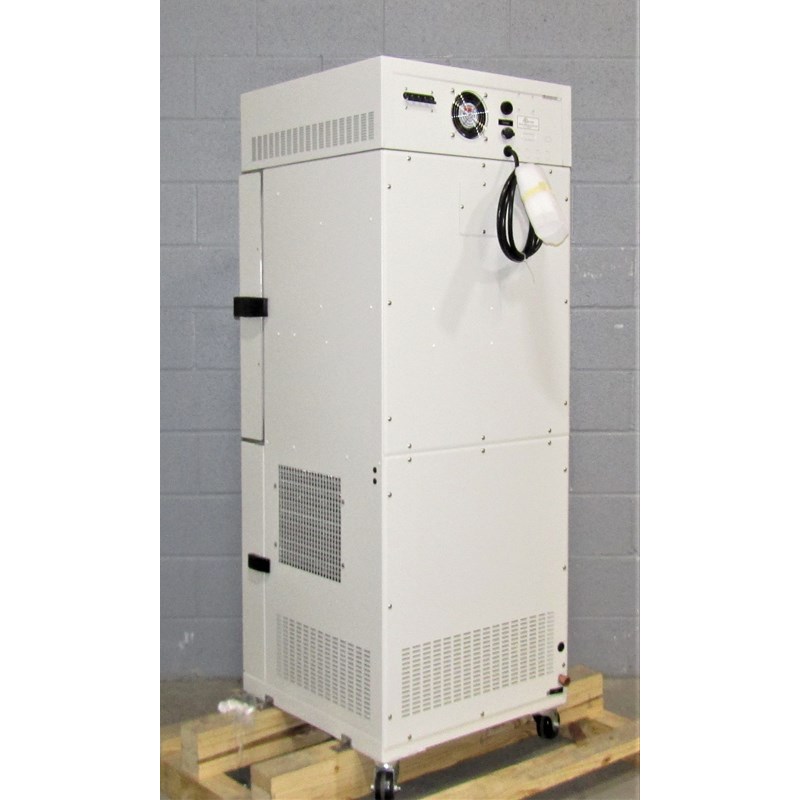

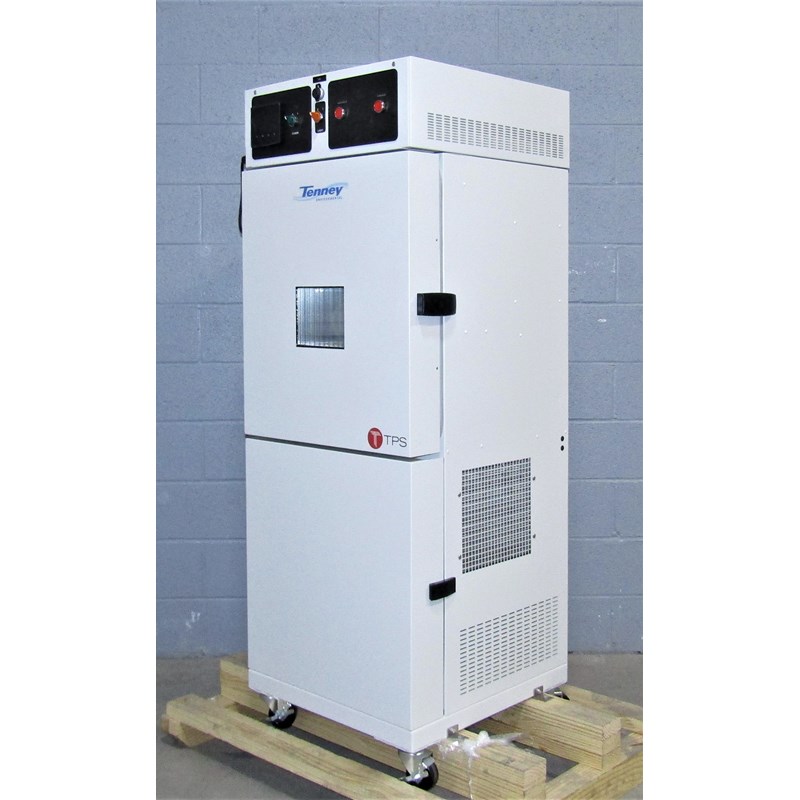

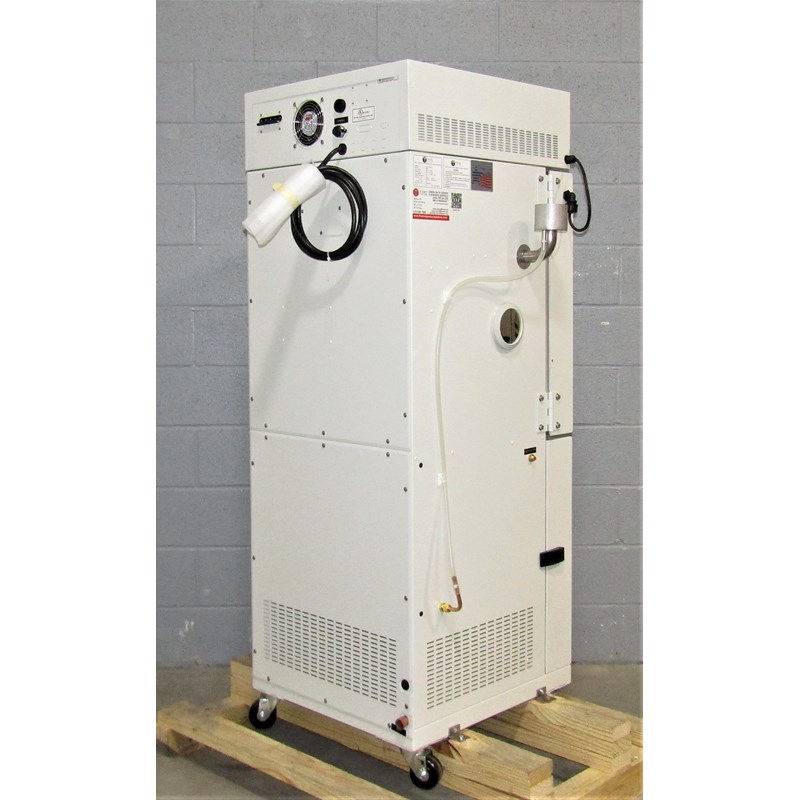

T2RC Temperature & Humidity Cycling Test Chamber Serial#: 170695-01

R&D Unit Available for Monthly Rental or Rent to Own.  Can Ship in 3-5 days!

Benefits

  • Easy to use controller
  • Fiberglass and polyurethane around chamber for uniform insulation
  • Minimal thermal transfer for more accurate results
  • Accurate control and display with minimum maintenance
  • Units are mobile
  • The Tenney T2 Temperature / Humidity Cycling Test Chamber has a minimum footprint

Features

  • Vapor-tight, continuously welded stainless steel interiors
  • Low work space height to ease the loading and unloading of product
  • Vertical re-circulation conditioning system
  • Ethernet Communications
  • Platinum Resistance Temperature Detector (RTD)
  • Electronic capacitive humidity sensor
  • Cascade refrigeration system
  • Built in safety devices

Pricing Information

  • List Price New: N/A
    •
  • Purchase This Unit For: N/A
    •
  • Rent This Unit For: $1,650.00 / month
    •

Specifications

  • Internal Dimensions: 16"W x 13"D x 15"H
  • External Dimensions: 26"W x 26"D x 67"H
  • Temperature Range -68C - 180C
  • Humidity 20% to 95% RH in the dry bulb range of +20°C to 85°C as limited by a 3°C dew point
  • Power Required- 120VAC, Single Phase, 60Hz
  • Amp Draw: 16
  • Amp Fuse: 20
  • Approximate Weight: 853 pounds

Control System

Watlow F4T Temperature Controller

Watlow F4T Temperature Controller

The Watlow F4T Temperature Controller with INTUITION™ temperature process controller combines the flexibility of a modular I/O controller with best-in-class ease of use.

Features

  • 4.3-inch, color touch panel with high-resolution, graphical user-interface
  • 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability
  • 40 ramp and soak profiles with real-time clock and battery backup.
  • Ethernet Modbus® TCP connectivity
  • High-speed USB 2.0 host port
  • Modular design, which offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility
  • Optional Data Logging capability
  • Optional Graphical Trend Chart
  • TPS provides panel mounted USB and Ethernet ports located on the front control panel of the equipment

Options

Included Options

  • Window in Door w/Interior Light
  • Watlow F4T controller with data logging and chart trending capabilities installed.
  • Includes a set of four (4) phenolic non-marking 3-in. diameter casters
  • (1) 3 inch diameter lead-in port with plug, left side wall centered in work space
  • UL508A Control Panel
  • Limited Warranty Included

Available Options

  • Shelves
  • GN2 Purge System
  • LN2 Boost Cooling System
  • CO2 Boost Cooling System
  • Water Recycling Systems
LinkTenn 32 Controller Software
