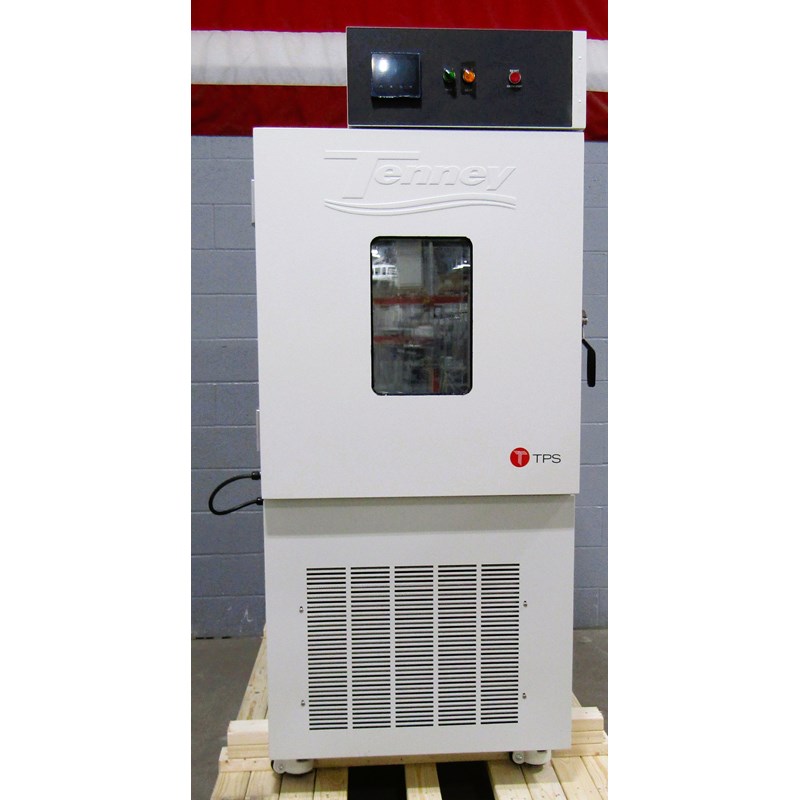

Tenney TC10C Temperature Only Environmental Test Chamber Serial#: 170749

Rental Returned TC10C Temperature Only Test Chamber Available for Immediate Sale or Monthly Rental.  Ask about our Rent to Own Option.  Can Ship in 3-5 Days!

The TC Series of environmental cycling reach-in test chambers include both temperature-only chambers and temperature / humidity chambers. The Tenney TC Series Cycling Test Chambers offer design features for optimal performance such as a high volume horizontal-down air circulation system with an electric heating system and a mechanical refrigeration system. If the humidity option is selected, a vapor injection type humidification system is used to condition the product. A wide range of options can be added to enhance the equipment. Since 1932, Tenney engineering continues to incorporate the latest technologies in heating, cooling, and humidification to meet the most stringent demands in the industry.

Benefits

  • Robust design delivers consistent, reliable, repeatable results that lead to higher productivity
  • Constructed for long life and thermal integrity
Features
  • Smart 1.0, 3.5 inch controller
  • Air cooled refrigeration
  • Platinum RTD temperature sensor
  • Heavy-duty leveling casters
  • Nichrome wire air heater
  • Solid-state pressure switches
  • Backup safety thermal cutoff
  • Chamber vent port

Pricing Information

  • List Price New: $ 24,953.00
    •
  • Purchase This Unit For: $ 23,753.00
    •
  • Rent This Unit For: $ 1,700.00 / month
    •

Specifications

  • Temperature Range: -68°C to 180°C
  • Humidity Range: Not applicable for this style chamber
  • Interior Dimensions W X D X H (inches): 24 x 26 x 28
  • Exterior Dimensions W X D X H (inches): 34 x 65 x 78
  • Crating Dimensions W X D X H (inches): 38 x 62 x 84
  • Electrical Power: 230V/240V 1 Phase 60 H
  • Amp Fuse: 60
  • Amp Draw: 45

Control System

Watlow F4T Temperature Controller

Watlow F4T Temperature Controller

The Watlow F4T Temperature Controller with INTUITION™ temperature process controller combines the flexibility of a modular I/O controller with best-in-class ease of use.

Features

  • 4.3-inch, color touch panel with high-resolution, graphical user-interface
  • 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability
  • 40 ramp and soak profiles with real-time clock and battery backup.
  • Ethernet Modbus® TCP connectivity
  • High-speed USB 2.0 host port
  • Modular design, which offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility
  • Optional Data Logging capability
  • Optional Graphical Trend Chart
  • TPS provides panel mounted USB and Ethernet ports located on the front control panel of the equipment

Options

Included Options
  • Four leveling casters
  • (2) 3 inch access ports each centered in sidewalls of the chamber
  • Window and Interior Light
  • Programmable Watlow F4T Controller
  • Data Logging & Chart Trending Capabilities
Additional Options
  • Stainless Steel Wire Shelves
  • Boost Cooling
  • Boost Heat
  • Dry Air
  • NIST Calibration Certificate
  • OTP
