Blue M IGF-6680-F-F4T Inert Gas Oven Serial#: 165039

***Rare Opportunity***

Customer Returned 4.2 cubic foot Blue M Inert Gas Oven. Oven is complete and can ship in 5-7 days.

Benefits

  • Welded and sealed inner chamber eliminates fume migration into insulation
  • Horizontal air flow assures uniform thermal performance
  • Assures safety of product and operator with protection from exceeding heat limits
  • Extra door panel shields operators from incidental burns
  • Ideal for annealing, heat treating, stress relieving, binder burn-out, ceramic firing

Features

  • Electric open-air heavy gauge nichrome wire heater elements
  • Adjustable air intake and exhaust dampers
  • 6 inches of mineral wool insulation
  • Interior reinforced 304 stainless steel
  • 4 inches of fiber- glass insulation

Pricing Information

  • List Price New: $ 27,395.00
    •
  • Purchase This Unit For: $ 24,500.00
    •
  • Rent This Unit For: N/A
    •

Specifications

  • Watlow F4T Controller
  • Control Panel: UL508A
  • Controller Location: Bottom Mount
  • Circuit Breaker Lock-Out
  • Door Style: IGF - Inert Gas Single Door
  • Door Hinge: Right Hand
  • Emergency Stop w/Safety Relay
  • Low N2 Alarm
  • Shelves: 1 Stainless Steel
  • Warranty: One Year Parts & Labor
  • Interior Dimensions: WXDXH (inches) 20x18x20
  • Exterior Dimensions: WXDXH (inches) 46x36x71
  • Voltage: 230/240VAC, 3 Ph  60 Hz
  • Temperature: 15°C above ambient to 593°C (1099°F)
  • Amp Draw: 38A
  • Fuse: 60 Amp
  • Weight: 1,103.00
  • FG# R753425

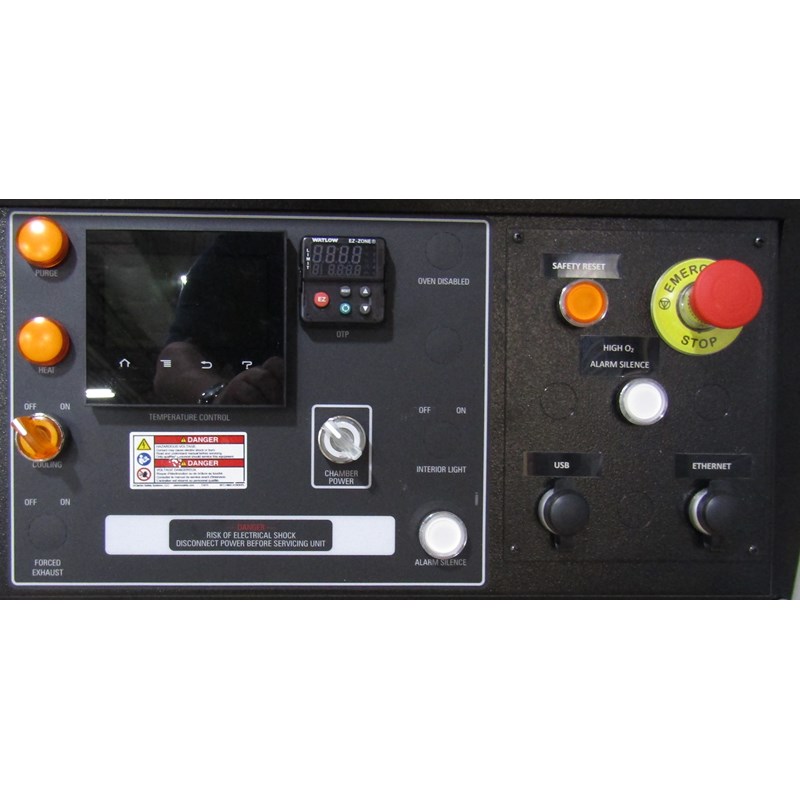

Control System

Watlow F4T Temperature Controller

Watlow F4T Temperature Controller

The Watlow F4T Temperature Controller with INTUITION™ temperature process controller combines the flexibility of a modular I/O controller with best-in-class ease of use.

Features

  • 4.3-inch, color touch panel with high-resolution, graphical user-interface
  • 1 to 4 control loops with TRU-TUNE+ adaptive control algorithm for superior controllability
  • 40 ramp and soak profiles with real-time clock and battery backup.
  • Ethernet Modbus® TCP connectivity
  • High-speed USB 2.0 host port
  • Modular design, which offers numerous types of field pluggable modules for maximum flexibility and easiest compatibility
  • Optional Data Logging capability
  • Optional Graphical Trend Chart
  • TPS provides panel mounted USB and Ethernet ports located on the front control panel of the equipment

Options

Included Options:
  • Emergency Stop w/Safety Relay
  • One (1) Stainless Steel shelf
  • Low N2 Alarm
  • UL 508A Control Panel
  • Over-Temperature Protection
Available Options:
  • Additional Stainless Steel Shelves
  • NIST Calibration
  • Maintenance (Spare Parts) Kit
  • 24-hour/7 day digital timer
  • 10" Circular chart recorder
  • Process View Software
  • Data Logging & Chart Trending Options for the Watlow F4T Controller

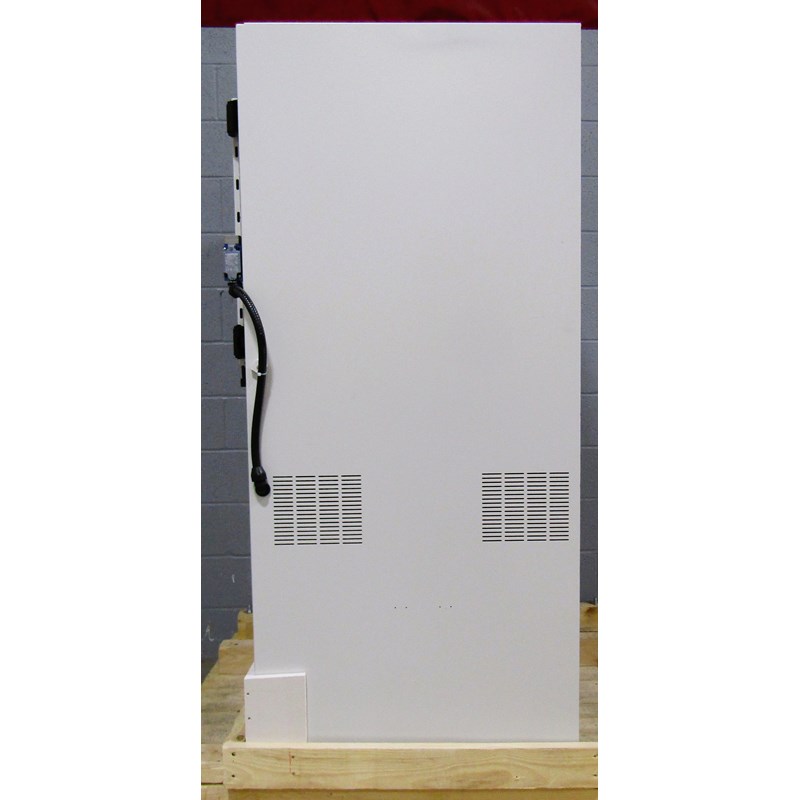

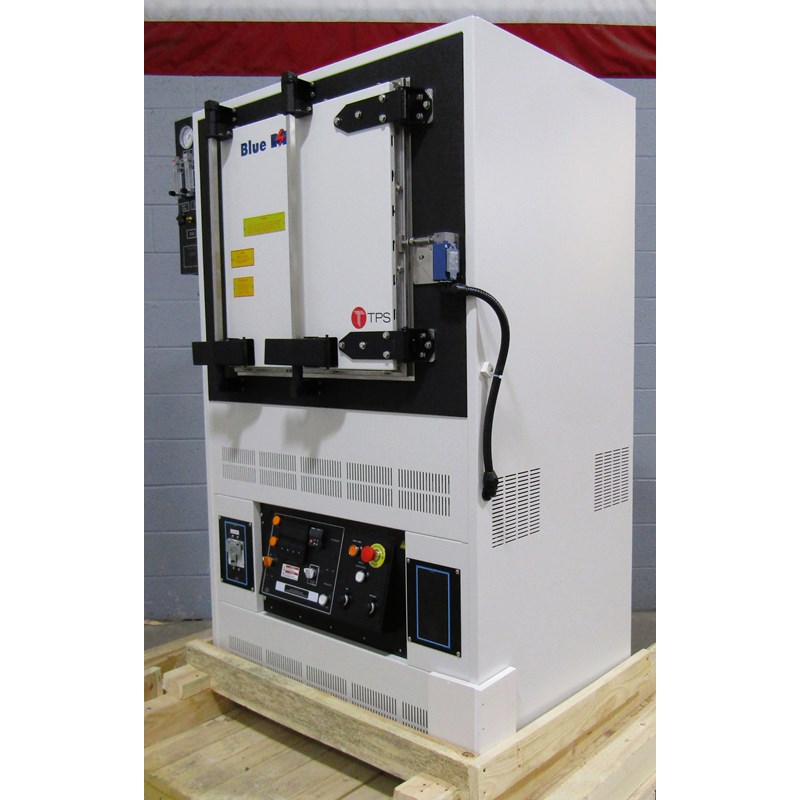

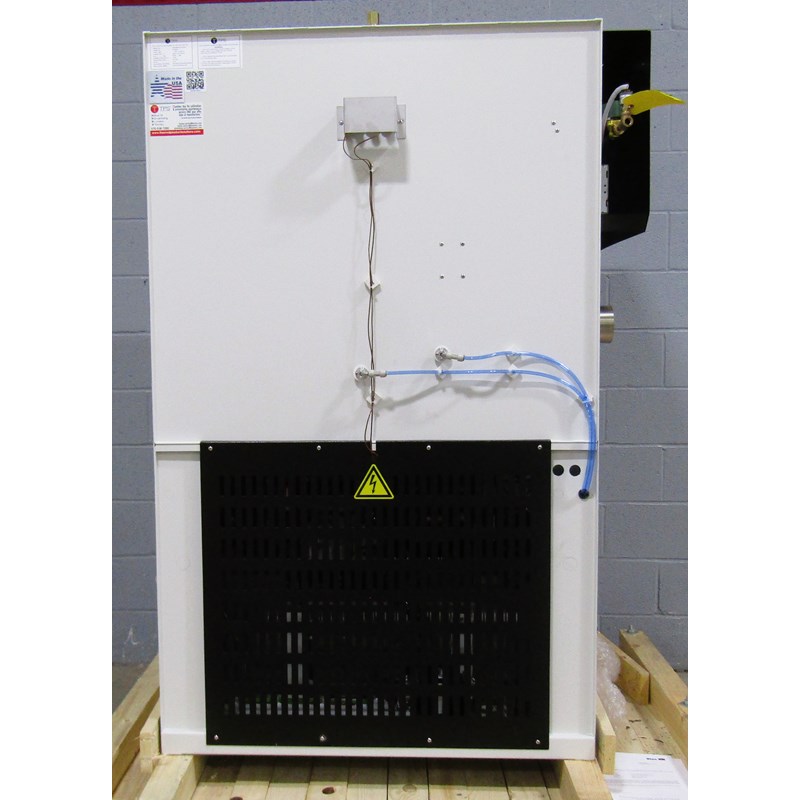

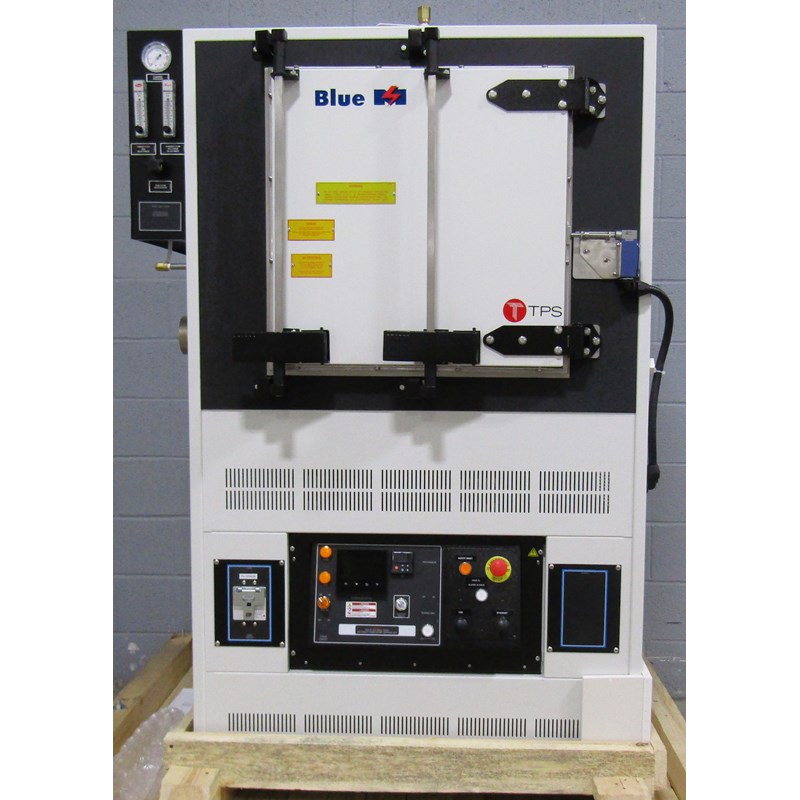

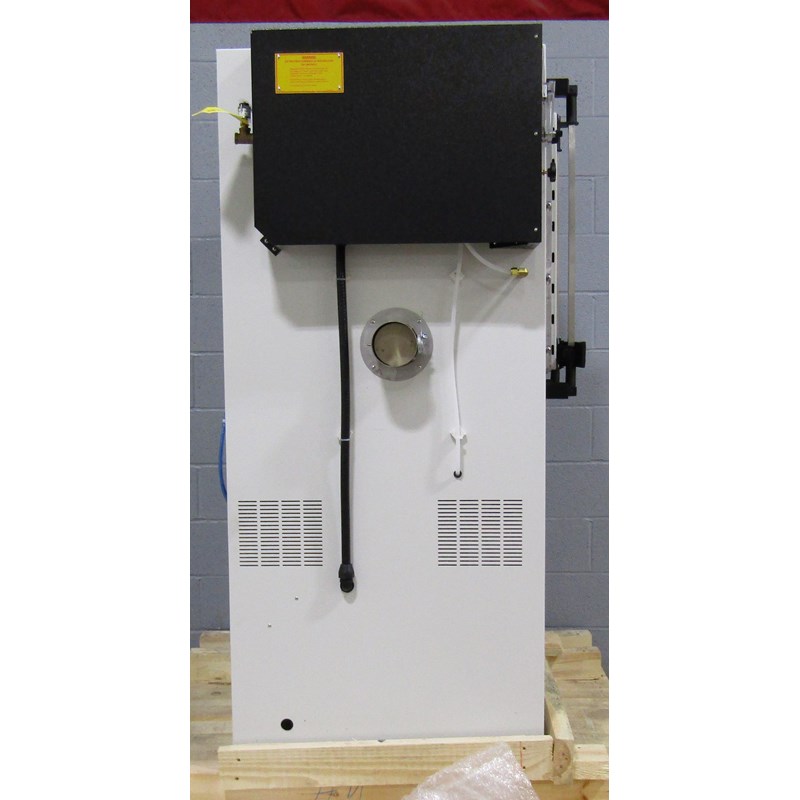

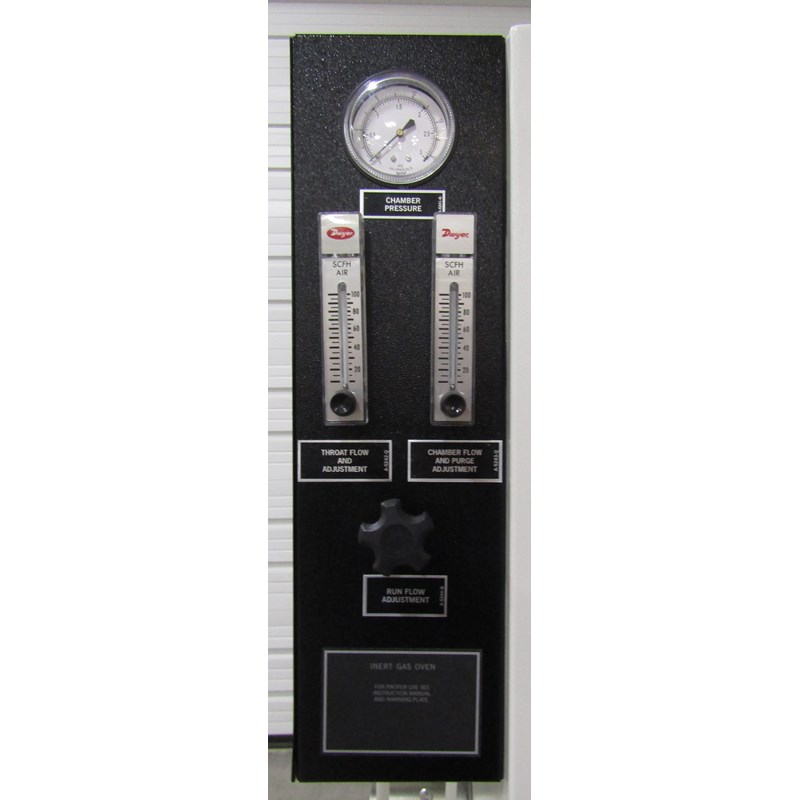

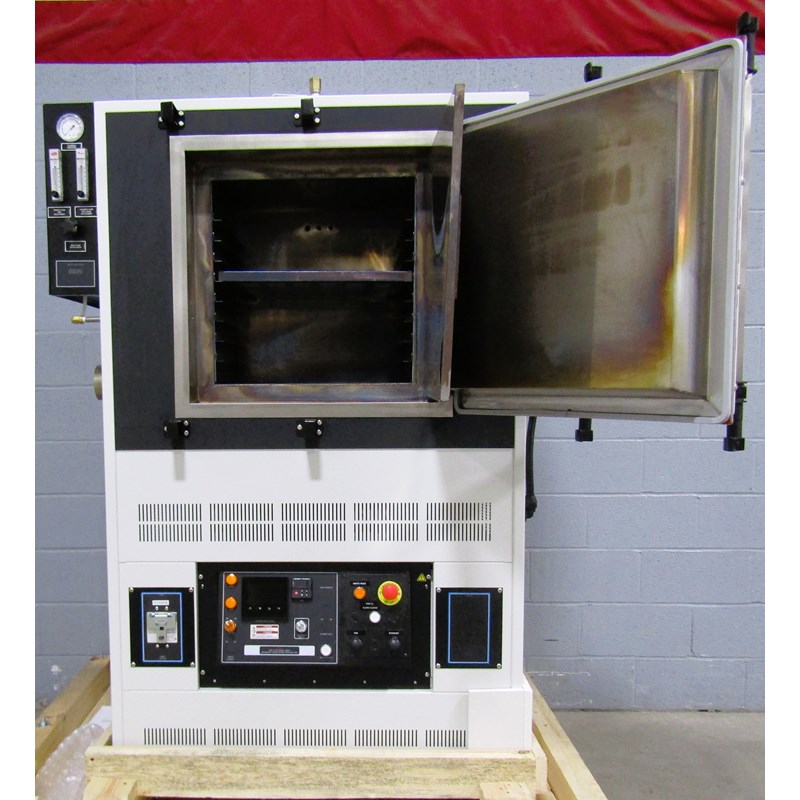

Additional Images
