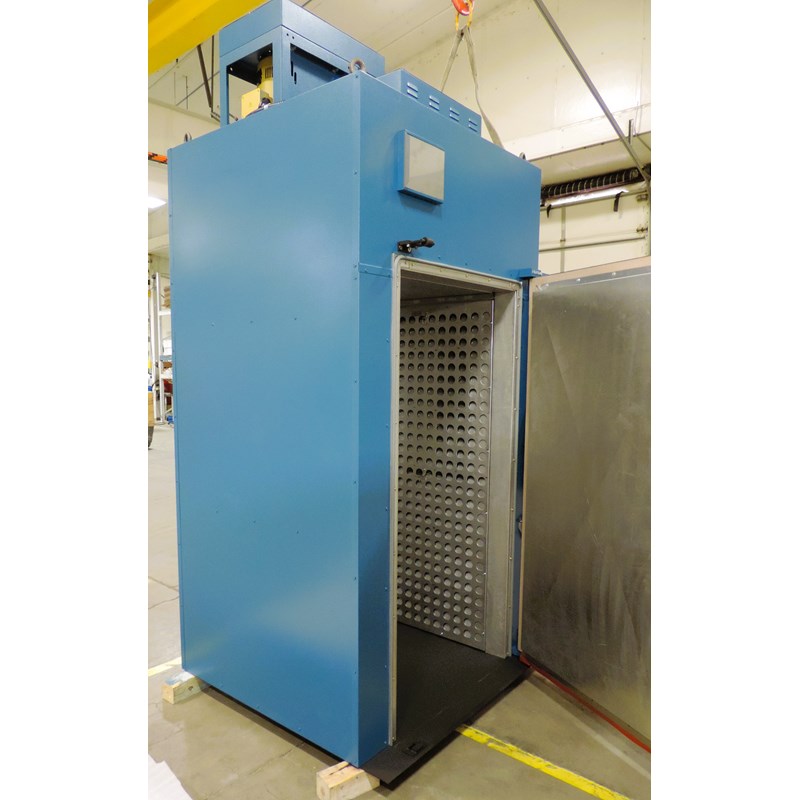

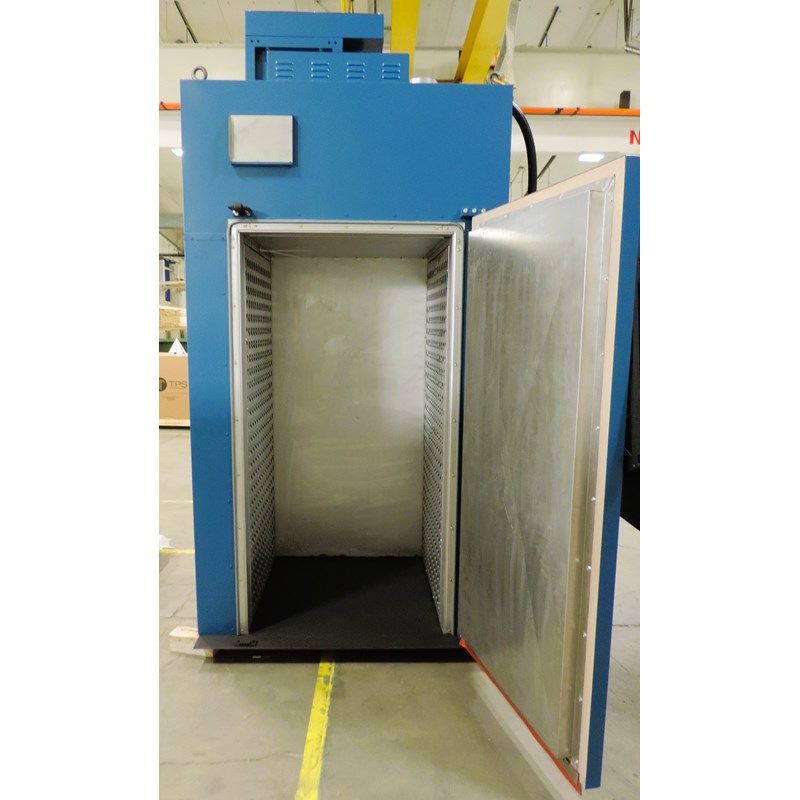

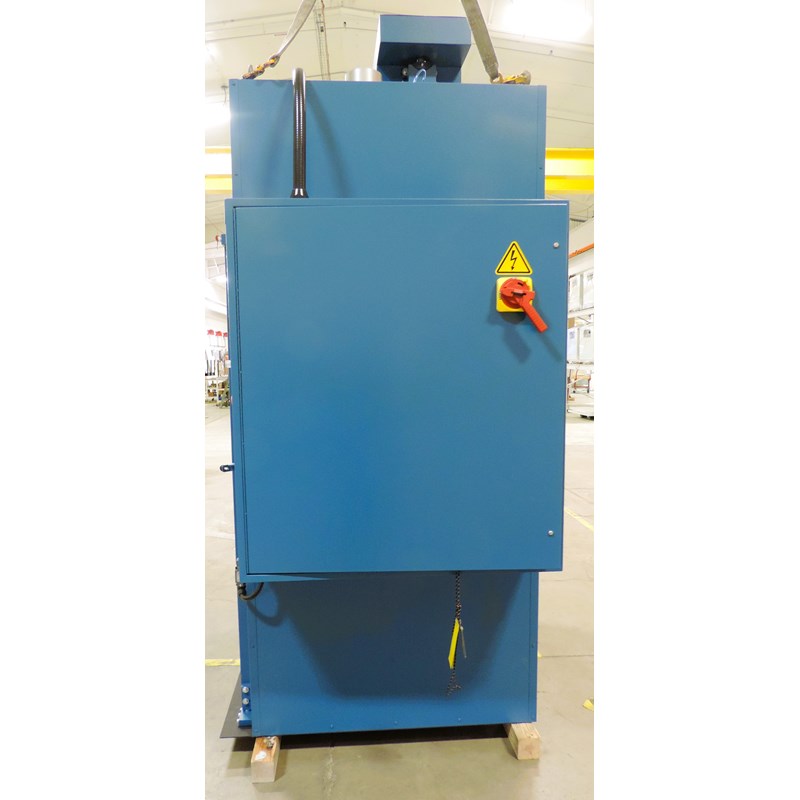

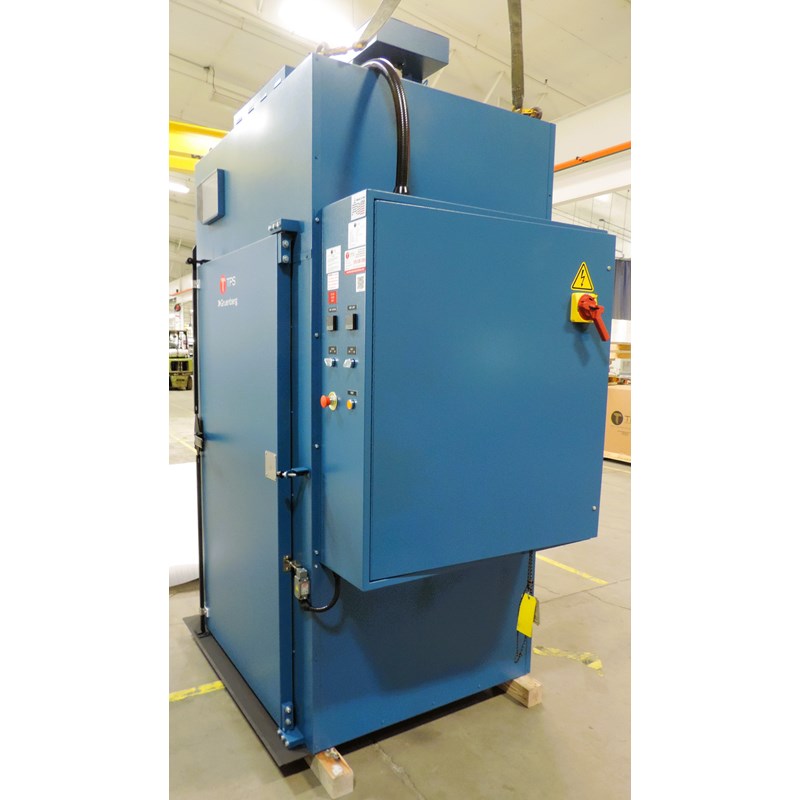

Gruenberg T45H54.0-G Class "B" Truck-In Oven Serial#: 122584

Gruenberg Truck in Oven Available for Quick Shipment.  Never Used!  Hurry, This Will Not Last Long!

Features

  • Heavy-duty, fully welded structural steel frame
  • CHIL construction ensures minimal heat transfer from oven chamber to the exterior
  • Removable side walls & chamber top for easy clean-up and maintenance
  • Front Door is constructed using a structural steel frame to ensure sealing integrity
  • Insulation is moisture-proof, non-combustible, non-settling, and asbestos-free
  • Energy-efficient, Incoloy® sheathed, seamless tubular heaters
  • Heating elements are suspended in the plenum, which is adjacent to the process chamber so there is no radiant influence on the work in process

Benefits

  • The Gruenberg Standard Truck In Oven accommodates a variety of thermal processing applications up to 650°F
  • Ideal for powder drum heating, aging, core hardening, drying, preheating, curing, and component testing
  • Additional options extend the range of applications
  • Top quality CHIL construction is energy-efficient and minimizes equipment effort
  • Heating elements designed to prevent radiant influence on the work in process

Pricing Information

  • List Price New: $53,408.00
  • Purchase This Unit For: $42,726.00

Specifications

  • Internal Dimensions: 36"W x 36"D x 72"H
  • External Dimensions: 54.5"W x 44.50"D x 96.44"H (cabinet)
  • External Dimensions: 65.5"W x x 49.56"D x 117" (O.A.H)
  • Maximum Operating Temperature: 232C
  • Power Requirement: 480V / 30 / 60Hz / 77 FLA
  • Air Circulation: Horizontal
  • Heat Type: Electric
  • Material of Construction: Floor - Hot Rolled Steel (3/16" thick plate)
  • Material of Construction: Walls - Aluminized Steel (18 & 20 ga)
  • Material of Construction: Ceiling - Aluminized Steel (18 ga.)
  • Material of Construction: Insulation - Mineral Wool (4" Walls & Ceiling)

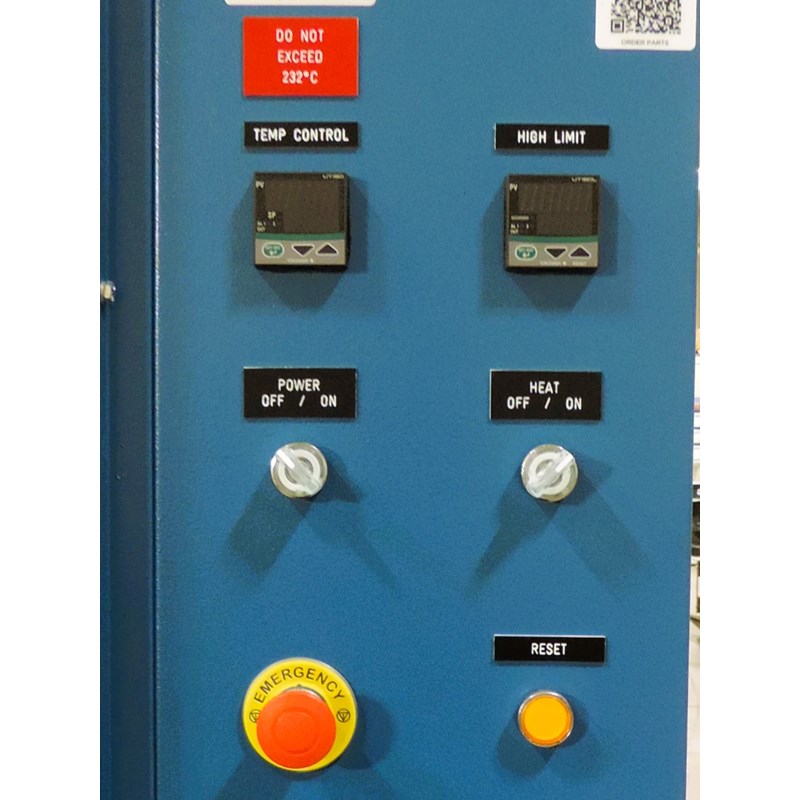

Control System

Yokogawa UT150 Temperature Controller

Yokogawa UT150 Temperature Controller

  • 1/16 DIN controller
  • Single setpoint
  • LCD display
  • Digital input and outputs
  • Type J thermocouple
  • Shuts down heat control system and blower when high heat limit is detected and activates alarm

Options

Included Options

  • Main Power Disconnect Switch
  • Emergency Stop Button
  • Door Switch
  • Lifting lugs
  • Natural Intake & Exhaust
  • Process Air Circulation (Horizontal)

Available Options

  • Loading Trucks
  • Loading Trays
  • Temperature Recorder
