Blue M DC-256-GOP-C-PM Mechanical Convection Oven Serial#: DC-4601

Fully Refurbished Blue M Oven Available for Rent or Immediate Purchase. Ask about our Rent to Own Option!

The Blue M Standard Mechanical Convection Oven is ideal for a number of laboratory and industrial oven applications, including epoxy curing, moisture drying, UL testing, aging of electronic components and devices, and other processes and testing requirements.

Benefits
  • Horizontal air flow assures uniform thermal performance under all loading conditions
  • Exclusive Blue M Eternal heating elements - the most reliable available, with heavy gauge, high temperature nickel chromium where, low-watt density for longer service life, standard air flow switch
  • Blue M one-pass air flow controls your profile, including cool down with infinitely variable control from full re-circulation to full one pass, and optional motorized damper for automatic operation
  • Direct drive blower multi-blade centrifugal blower with high-volume air delivery, dynamically balanced
Features
  • Differential air pressure switches alert operators before costly problems with batch runs
  • Quick access for simple inner chamber cleaning
  • Easy to use controller for repeatable results and less training requirements
  • Reinforced Type 304 stainless steel interior resists corrosion and makes cleaning easy
  • 4 inches of fiberglass insulation saves energy and provide cool to the touch exterior
  • Adjustable air intake and exhaust dampers for flexible testing conditions
  • Infinitely variable control from full re-circulation to full one pass to accommodate any processing need
  • Profiling or single set-point temperature controls offer flexible recipe options
  • Standard air flow switch

Pricing Information

  • List Price New: $ 9,780.00
  • Purchase This Unit For: $ 7,250.00
  • Rent This Unit For: $ 1,850.00 / month

Specifications

  • Temperature Range: 15°C above ambient to 350°C
  • Interior Dimensions W x D x H (inches): 25 x 20 x 20
  • Exterior Dimensions W x D x H (inches): 45 x 36 x 49
  • Crating Dimensions W x D x H (inches): 55 x 46 x 59
  • Cabinet Type:Bench Standard Single Door
  • Electrical Power: 230/240VAC, Single Phase 60 Hz
  • Amp Draw: 29 Fuse: 40A
  • KW: 6kW
  • FG# R230628

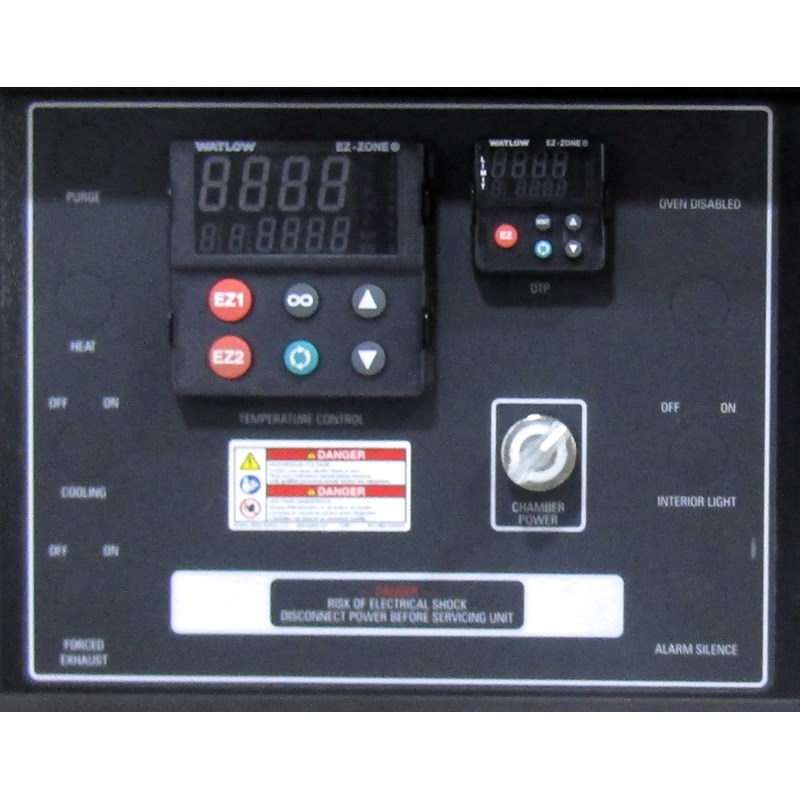

Control System

Watlow EZ Zone PM (PID)

Watlow EZ Zone PM (PID)

  • Single-channel, ¼ DIN, non-profiling-type controller
  • Type J thermocouple for temperature measurement
  • Fully programmable menu system
  • Auto-Tune is provided for fast, efficient start ups

Options

Included
  • Controller Location: Bottom Mount
  • Over Temperature Protection
  • Limited warranty on Refurbished Equipment
Available
  • Stainless Steel Shelves
  • Maintenance Kit
  • NIST Calibration Certificate
  • Floor Stand
  • Process Timer
  • F4T Controller Upgrade
  • Data Logging & Chart Trending Available with F4T Controller Upgrade
